Industry Pain Points — When Conventional Piping Becomes the Weak Link

In oil & gas extraction, chlor-alkali/soda ash production, and large-scale municipal projects, piping systems face three extreme challenges:
| Pain Point | Conventional Solution Failures (Rubber-Lined Steel / Stainless / FRP) | Hidden Costs Incurred |
| 1. Combined Corrosion & Abrasion | Simultaneous attack from strong acids, alkalis, and high-salinity slurries causes delamination of lined steel and pitting corrosion of stainless steel in chloride environments. | Unplanned shutdowns, environmental fines from leaks, high labor costs for replacement. |
| 2. Temperature Cycling & Large-Diameter Pressure | Embrittlement at low temps (-36°C risk of bursting), softening at high temps (>100°C loss of strength). Forming large diameters (>DN1000) under high pressure is difficult. | Forced use of expensive titanium or heavy rubber-lined carbon steel. Heavy weight complicates installation. |
| 3. Installation Efficiency & Sealing Integrity | On-site welding of flanges and repair of internal lining is cumbersome and quality control is challenging. Flange gasket areas become the primary corrosion entry point. | Extended construction timelines. Safety hazards associated with hot work (welding). |

Our Product — Reinforced Nylon & Steel-Nylon Composite Technology

We don't just supply pipe; we deliver “Polymer Alloy Solutions”validated by 40 years of rigorous service in “Petroleum, Chemical, and Mining” industries.
Two Core Series, Full Pressure Range Coverage:
1. Reinforced Nylon Pipe (Full-Plastic Reinforced)
Core Advantages: Ultimate corrosion resistance, non-toxic, lightweight, “integrally molded flange”.
- Application: Strong corrosive, pure media transport up to 1.6 MPa.
2. Steel-Nylon Composite Pipe (Rigid-Flexible Hybrid Structure)
Structure: Outer high-strength carbon steel bears pressure load; inner dense Nylon liner isolates all corrosive media.
Core Advantage: “Pressure rating up to 4.0 MPa”. Solves the industry paradox of "extreme corrosion resistance + high pressure containment."
Nylon Material Performance Data Sheet:
| Performance Metric | Rating | What It Means for You |
| Abrasion Resistance | 5-7x superior to standard HDPE | Extended service life when transporting slurry or phosphogypsum tailings. |
| Temperature Range | -36°C to 160°C | No cracking in arctic freezes; no deformation during steam purging. |
| Chemical Resistance | Full spectrum: “Weak acids, strong alkalis, concentrated brine” | Suitable for entire chlor-alkali and soda ash process streams. |
| Health & Safety |“Non-Toxic, Zero Leaching” | Certified for potable water standards. Safe for municipal supply. |
| Dimensional Capability | Up to ≥ DN2000 mm | Superior alternative to concrete box culverts: higher flow capacity, lower roughness coefficient. |

Industry-Specific Application Roadmap

We configure precise "pipeline formulas" based on specific media characteristics:

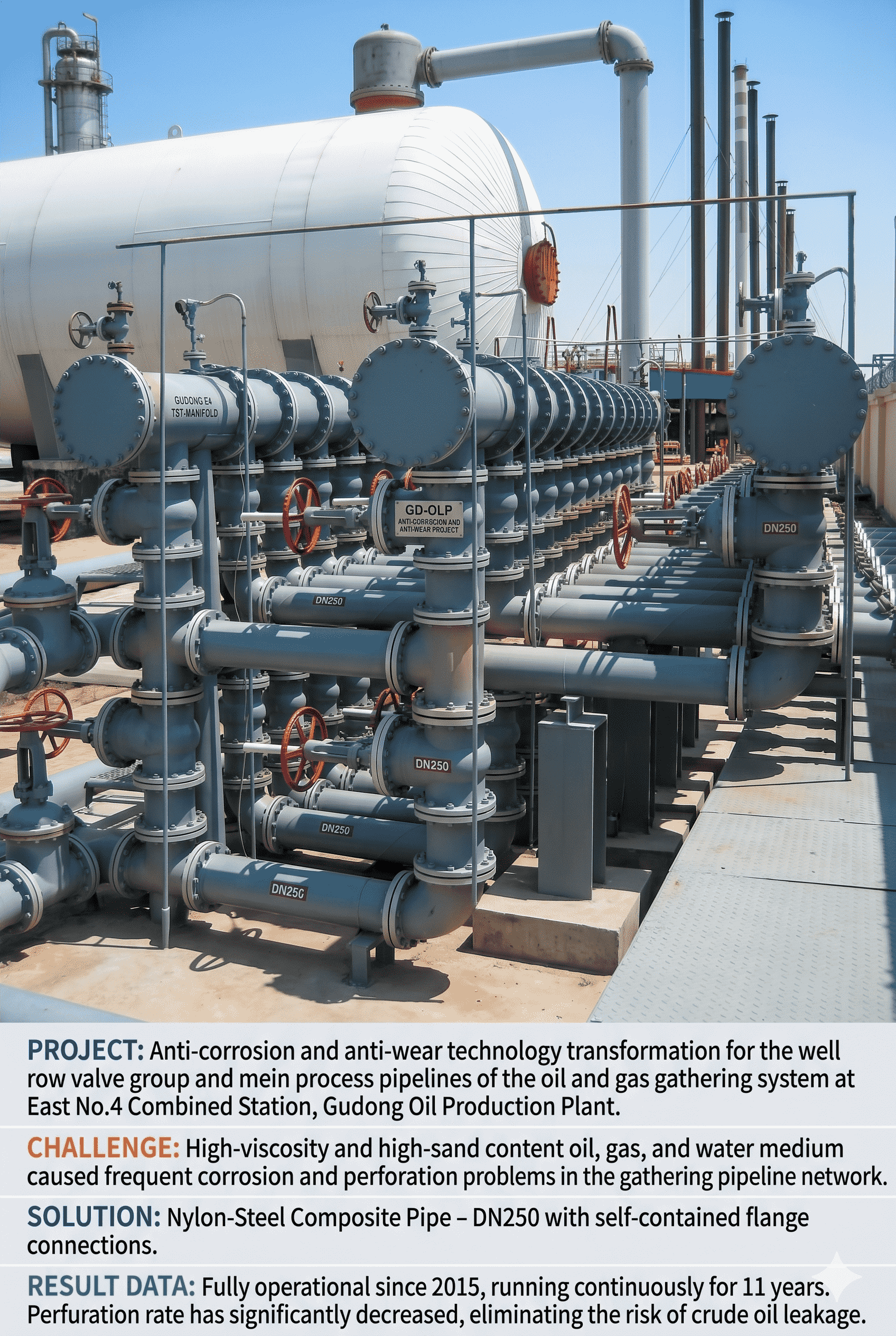

Oil & Gas Gathering and Water Injection
Challenge: Highly mineralized produced water (high Cl⁻), sandy crude oil, difficult remote site maintenance.
Solution: “Steel-Nylon Composite Pipe” + Integrated Flange.
Value Delivered:
Zero Corrosion: Eliminates bacterial and under-deposit corrosion in water injection lines.
No Field Lining Repair: Integrated flanges arrive ready to bolt. Installation speed increases by “40%” .

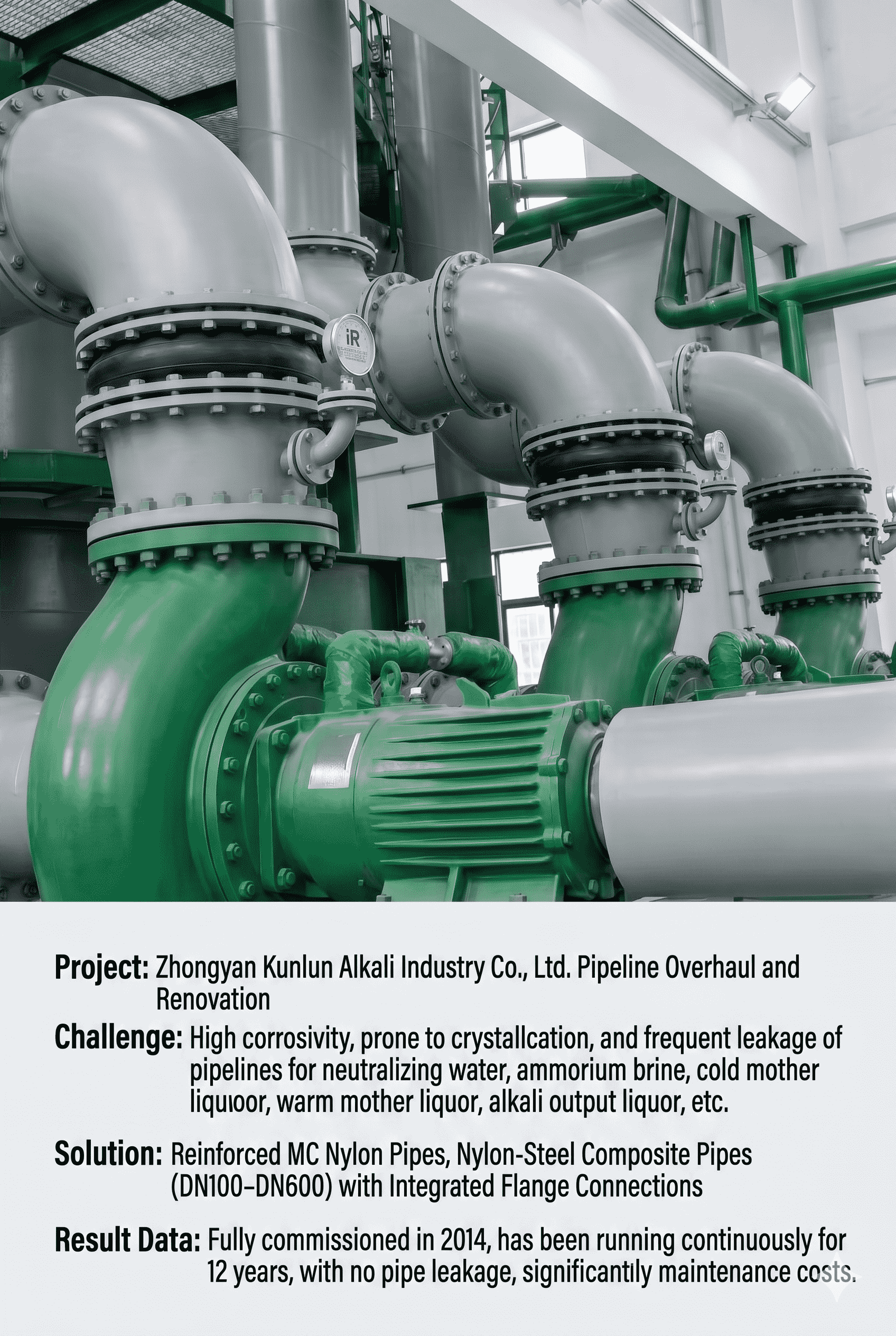

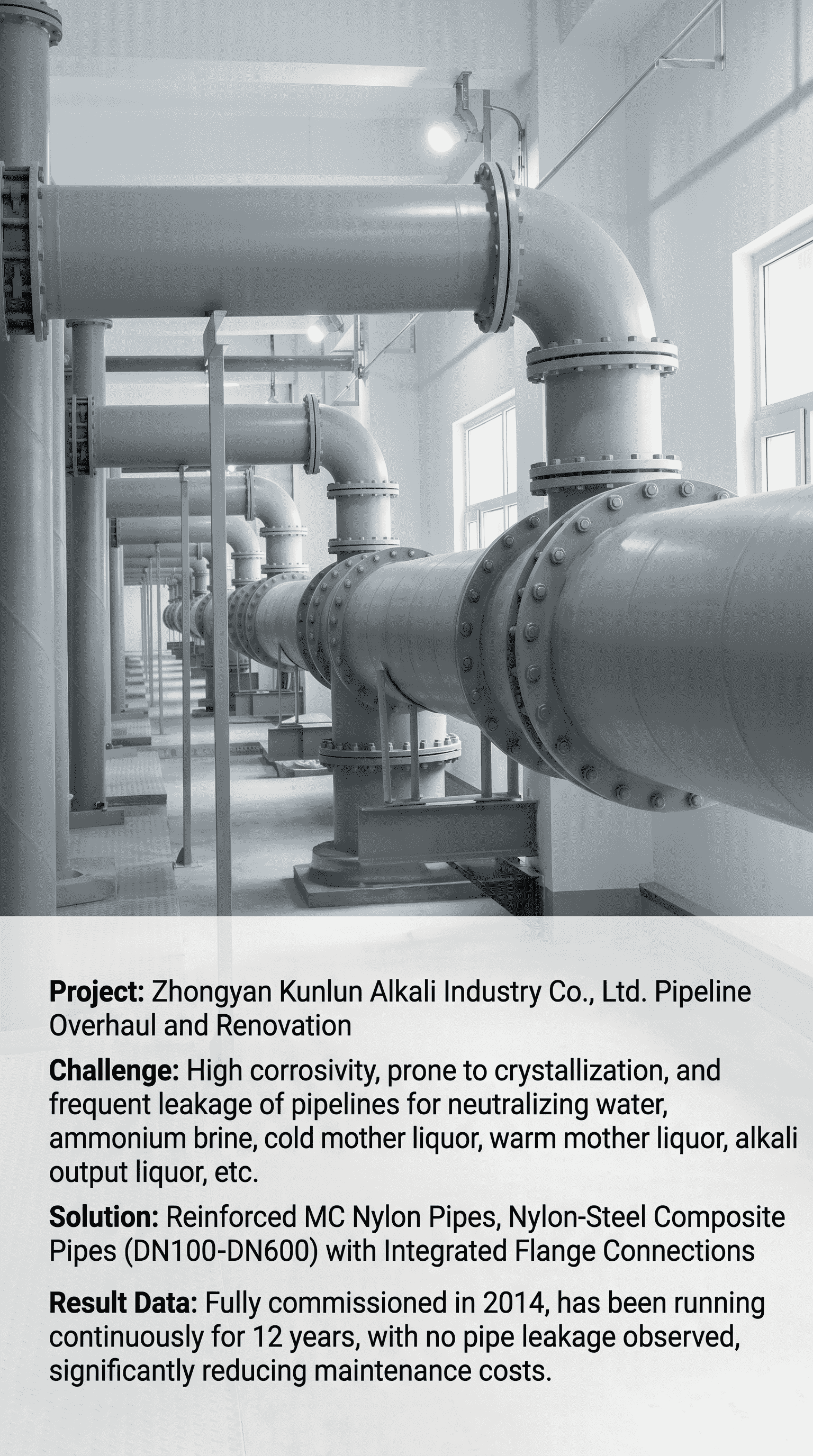

Soda Ash, Chlor-Alkali & Salt Chemical Industry
Challenge: High-temperature brine, wet chlorine condensate, caustic evaporation sections. Solution: “Reinforced Nylon Pipe” (Full-Plastic Series).
Value Delivered:
Eliminates Galvanic Corrosion: Cost-effective alternative to titanium/nickel alloys. Initial capital expenditure reduced by “30%-50%” . Anti-Scaling: Ultra-smooth inner wall prevents adhesion, ensuring long-term stability in evaporation units.
Phosphorus Chemical & Mine Tailings
Challenge: Highly acidic, abrasive phosphogypsum slurry; pressure fluctuations in long-distance transport.
Solution: Large-Diameter “Steel-Nylon Composite Abrasion-Resistant Pipe” (DN500-DN1200).
Value Delivered:
Patented Bottom Wear Layer: Service life is “3x longer” than standard rubber-lined steel.
Supports 4.0 MPa High-Pressure Conveyance: Enables single-stage, high-concentration long-distance transport, saving on intermediate pump station costs.
Municipal Water Supply & Seawater Utilization
Challenge: Ultra-large diameter (DN2000+) jacking construction, seawater corrosion, secondary contamination of drinking water. Solution: Reinforced Nylon Ultra-Large Diameter Pipe (DN2000+). Value Delivered:
Superior Hydraulics: Extremely low roughness coefficient maximizes flow volume for equivalent diameter, reducing energy consumption.
100-Year Design Life: Resistant to soil corrosion. No cathodic protection required. Lowest total lifecycle cost.

Why Have Major Projects Trusted Us for 40 Years?

| Comparison Item | “Nylon Composite Solution”| Traditional Rubber-Lined / FRP |
|Connection Method| Integral Flange, Bolt-Ready upon Delivery | Field welding of flange, internal lining repair required |
| Maintenance Frequency | Minimal, Near Maintenance-Free | Regular inspection required for delamination/bubbling |
| Pressure Fluctuation | Liner does not detach; Water-hammer resistant | Liner prone to tearing and edge lifting |
| Service Life | 30+ Years | Major overhaul/replacement in 5-10 years |

Choosing us means choosing a pipeline that is:
Immune to chloride-rich, high-temperature brine.
Unaffected by frost heave in permafrost regions.
Operational without downtime for liner repair.
